This post is about designing user experience in virtual environment on Chromebook and browsers across multiple devices. It describes our design process, thoughts, and outcomes.

Medellin, Colombia, a city has had to deal with serious problems. Today it’s listed as one of the most innovative cities in the world.

Citrix created a node structure for Medellin that allows every one of the 407 schools to be connected via one centrally-located data center. All 400,00 students across the entire city have equal access to virtual desktop and applications.

For better education and life, this’s one of the impacts we are doing. To be more specific, I design end user experience in this virtual environment — Citrix Receiver in-session.



In-(virtual)-session



Citrix Receiver is a client software that provides access to virtual desktop and apps from any devices, including laptops/desktops, tablets, and smartphones. It contains 2 major pieces:

  1. A client to navigate and access virtual services (You could imagine this’s a door.) and

  2. An environment to use the virtual services — This’s the “in-session”. (You could imagine this’s inside of the house.)

Here are some screenshots about in-session:



Problems to Be Solved

The concept between virtual environment and local devices isn’t clear for non-tech savvy users. Sometimes these are unrelated or even conflicting. For example:

  • Gesture conflicting
    If an user launches a virtual Windows 10 and makes it full screen in a local Windows 10 installed on Surface Pro3, when he/she swipes finger from right edge to screen center, which Notification panel should be triggered, the local one or the virtual one?






  • Unexpected workflow
    When an user try to copy & paste a string between local and virtual apps in HTML5 based environment, he/she actually need to paste the string to a virtual buffer first and copy again from there. For security reason, HTML5 prohibits direct accessing users’ local environment.




You probably have sensed the gap in between, and this’s the problem we need to solve. The problem details were identified in design process (which is written in next paragraph). Our goal is to bridge the gap and make virtual services easy to use for various types of end users. The measure of success is either:

  1. Users can interact with virtual services just like native local environment, or

  2. Users can memorize the interaction we designed without repeated learnings.


I’d like to focus on Chromebook and HTML5 (browsers) in-session experience design in this post. These are HTML based environments and leverage the majority of the code base in architecture. You’ll see more platform stories in other posts.

Since this’s also the first post about in-session experience, I’d like to include some research and analysis homework we did in this one an half year.



Existing in-session controls in Chromebook and browsers look like these:

Customers have complained about in-session user experience for a while, such as:

  • Toolbar is too big.

  • Can’t separate apps into individual windows.

(More details in user research paragraph)



The scope of this project is big:

  • Redesign existing in-session controls for virtual desktop in Chromebook

  • Make virtual apps seamless as native apps in Chrome OS and design native-like controls for supplementary functions

  • Redesign existing in-session controls for virtual desktop and apps in browsers — mainly on Chrome, Firefox, and Safari across desktop and mobile devices






Design Process



Similar to the IDEO design process, we came out a solution after deep understanding problems and then validated it.

The major difference is that ours is not linear. Design, research, product management, engineering, and customer support teams are actually going side by side in countless small and big discussion loops.

Designing in-session experience is not a single problem. We also need to consider its:

  • Complexity across multiple platforms,

  • Scalability for context and feature changes, and

  • Flexibility for various industry needs and customization.



I’m relatively senior. I lead couple designers and work closely with researchers, product managers, engineers, and customer support team to tackle the problems. This’s a great opportunity to learn and practice leadership.

Designers and researchers are definitely user centered. Product managers and customer support teams own business numbers that help us understand the priority. Engineers know feasibility. With these, we make decision with impact.



#1. Discovery



User Research

In terms of empathy, the biggest challenge we have is no easy access to real end users because:

  • Customers, from cooperate perspective, concern about business sensitive data.

  • IT admins thought they could 100% represent end users.



Without massive first hand voice, we rely on:

  • Customer feedbacks that sale engineers and product managers bring in,

  • Customer data from customer support team,

  • Online surveys,

  • Internal and external user interviews,

  • Customer on-site visits.

This’s not ideal but practical.

In user interviews and a customer on-site visit, we observed how people used our products. In an early stage conversation with customer, we listened to IT admins about their end users’ scenarios, use cases, and issues reported to help desk.



We conducted many user researches along with different product release timeline:




I work with the lead researcher to design survey and interview flows and assets. I also observe the interviews. Then we synthesize findings together. Comparing to past, we are much clearer about what the pain points our end users have. User research no doubt is insightful on design process.



Self-experience

Another way to discover is to experience. Based on user researches, we identified common use cases. I hosted workshops and asked participants to try to accomplish certain tasks and listed out all the obstacles in the workflows.

Putting ourselves in users’ shoes is always a good method for empathy. The participants came from different backgrounds relate more considerations than we thought.





#2. Interpretation


Re-frame the problem

Interpreting user research and self-experience results into causes help us identify the real problems. Some examples in HTML5 environment:

  • The existing Toolbar is actually not too big — The problem is that the Chromebook screen resolution is too small and horizontal prominent Toolbar blocks users’ vision on desktop and apps.

  • Accommodating apps in a single window doesn’t perform well on multi-windows tasking — Users often need to switch apps between local and virtual environments.

  • Users fail on copy&paste tasks — Because users expect native behavior works.

  • Users have hard time to find an action — Because our controls are neither visible nor recognizable.

  • Users can’t find a local folder — Because users aren’t clear about virtualization concept and how drives map.

  • Users are confused about action buttons — Because our messages or button labels contain terminologies that users can’t understand.

  • Users can’t get printing job done or connect a USB device — Because users thoughts external devices could work directly after plugging.


On TargetProcess (a task management tool), product managers add features as stories. Many stories might actually be one experience.

There are three stages on design evolution:

  1. UI design,

  2. Product design, and

  3. Customer experience design — We are here! Coherent and holistic considerations are required.






Analysis/Study

Diving into in-session more than one year, we studied and documented platform behaviors, competitors, and our existing implementation. Here are some examples:

1. Platforms behavior analysis:


(Click to view larger size)

(Click to view larger size)





2. Citrix vs. VMWare vs. Microsoft virtualization client competitive analysis:


(Click to view large size)

(Click to view large size)



(Click to view large size)

(Click to view large size)





3. High level user’s workflow:


(Click to view large size)

(Click to view large size)





4. In-session interactions overview and priority matrix:


In-session Interactions Overview

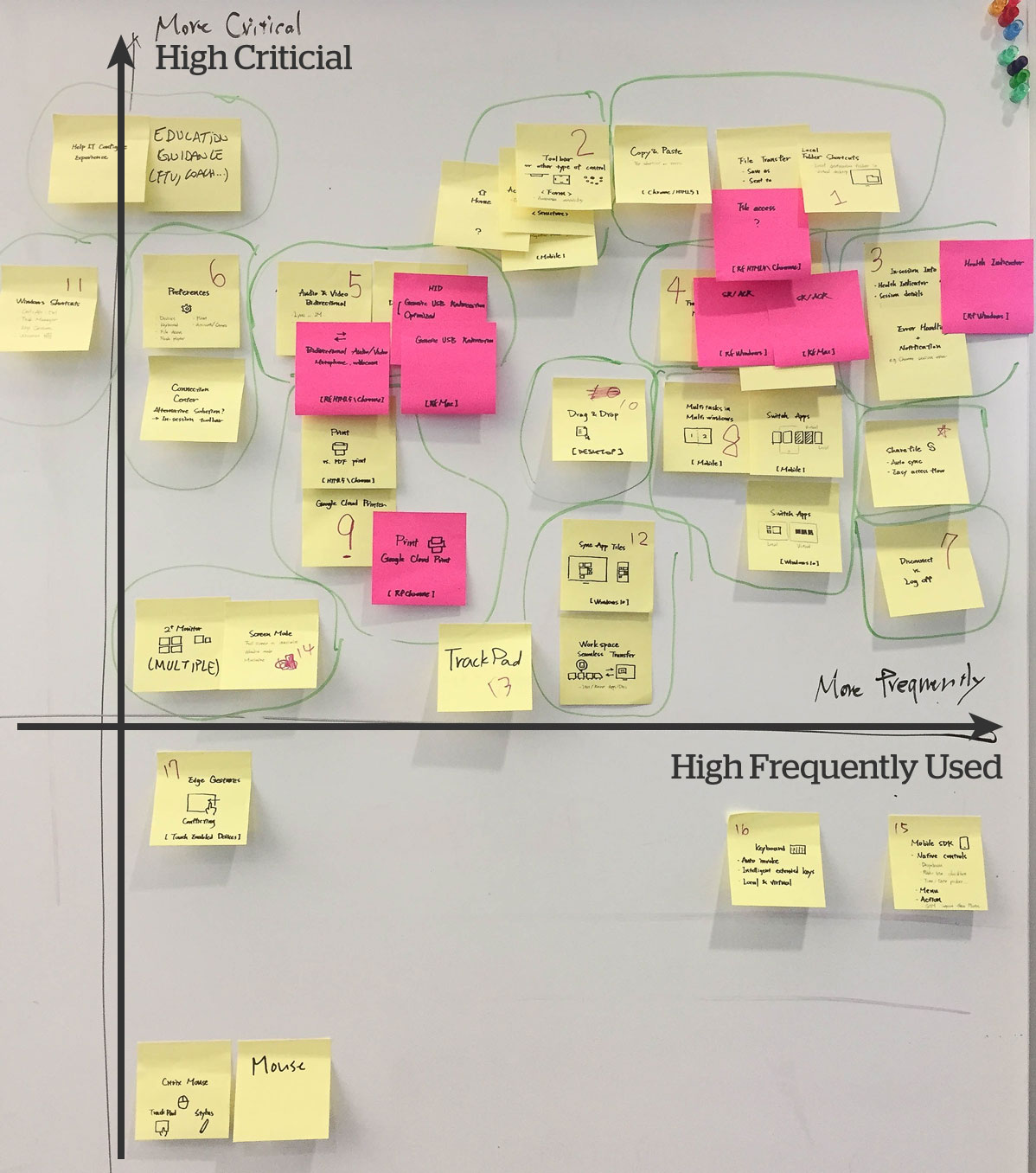

In-session Interactions Priority Matrix


Through above analyses, we also accumulate domain knowledge. In-session is across platforms and devices experience. We need these as foundation.



5. Competitors and other references


6. Interaction Map

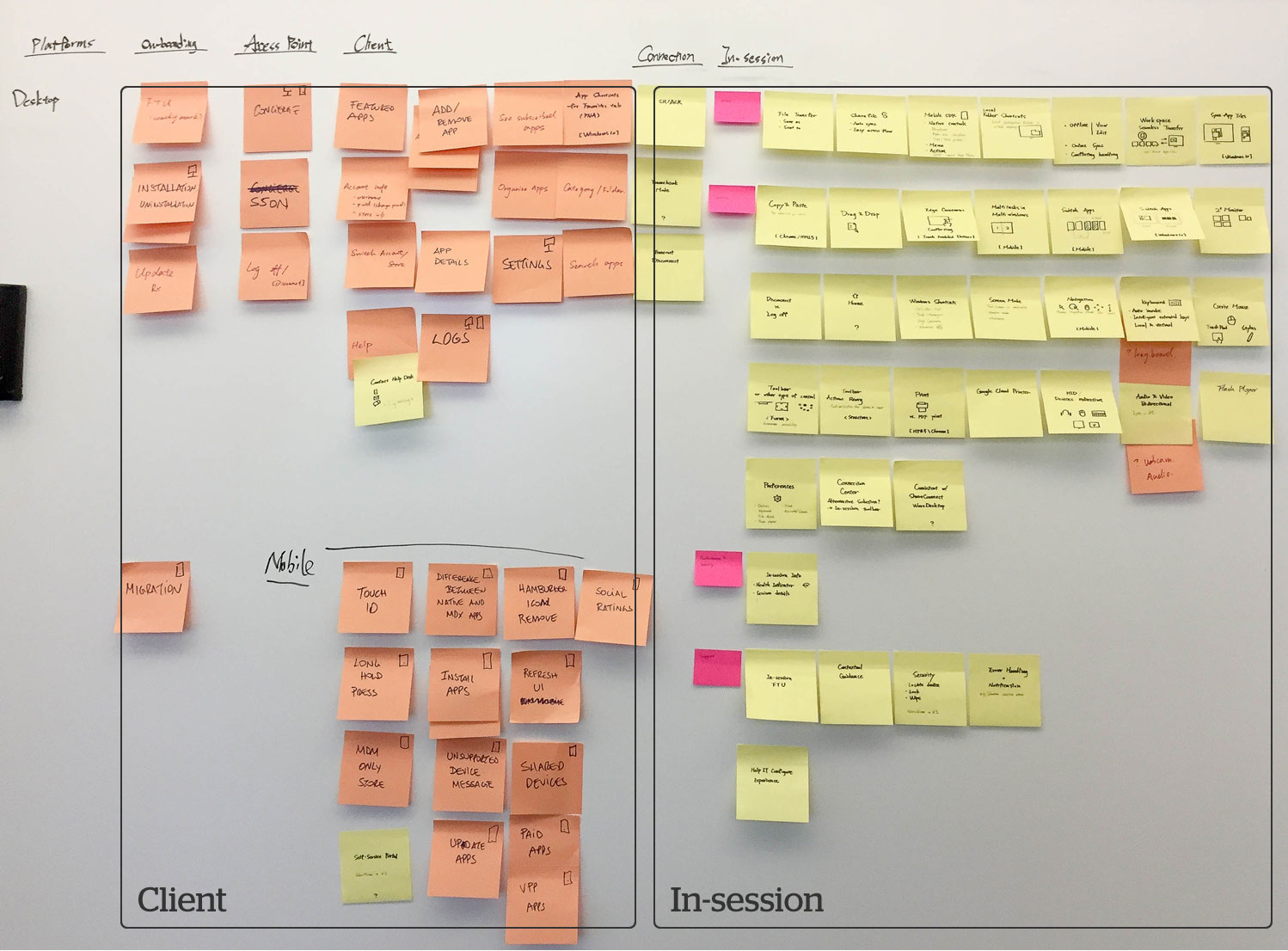

The most important one is the following interaction map that we defined high level information architecture. A series visualizations below illustrate the interactions in local and virtual environments:



Here are the key diagrams (click to enlarge):

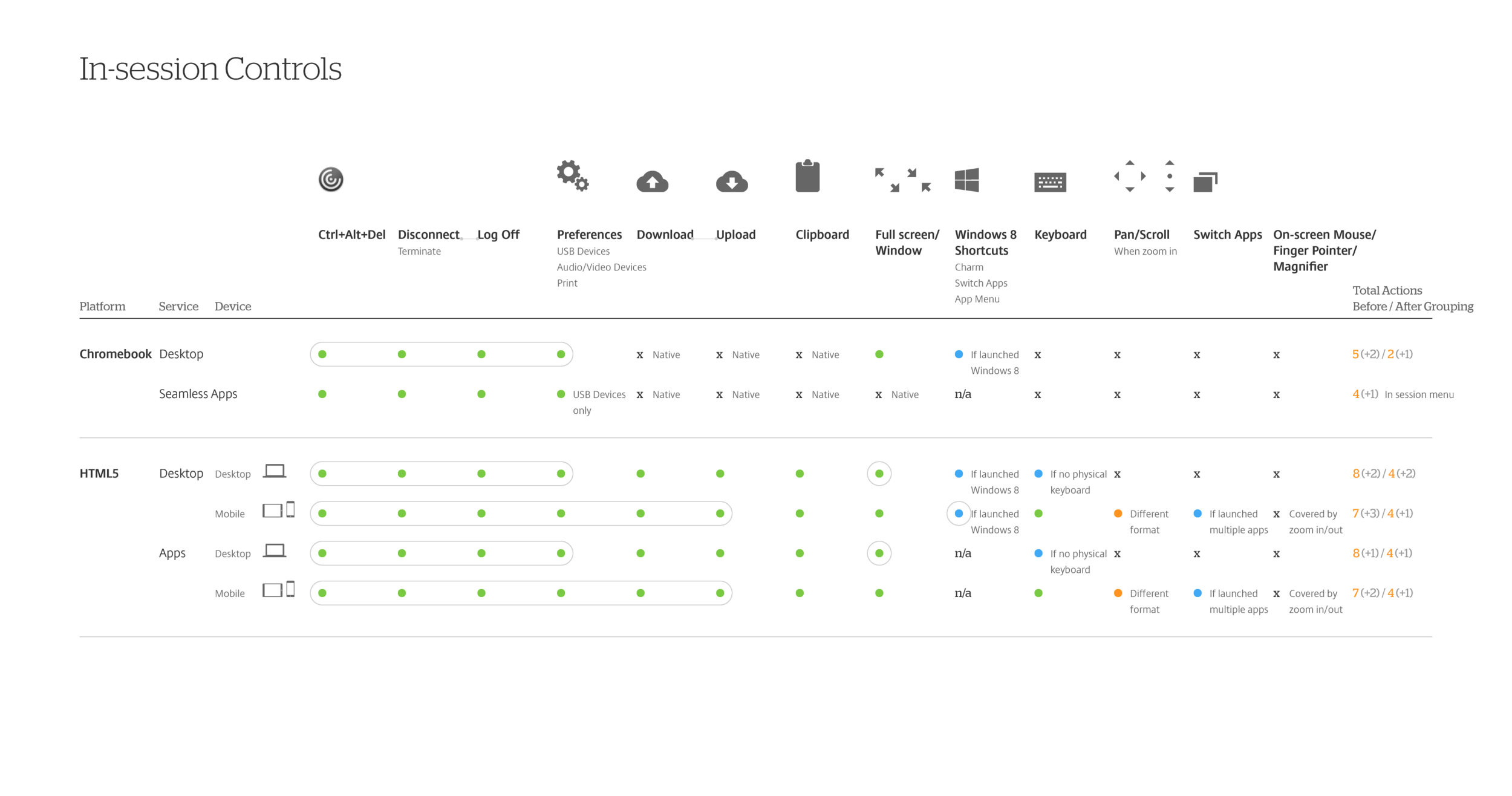

To be more specific for this project, we mapped Chromebook and browsers into the chart to clarify what exact functions we need. Furthermore, we differentiated these by usage frequency. Infrequently used functions were grouped for better organization. In the first right column, we are clear about the amount of functions need to be presented.



Designing for browses means multiple platforms and devices need to be taken into account: Windows, Mac, iOS, and Android on laptop, “laplet(e.g. Microsoft Surface), and mobile devices. A quick finding is we should align with native gestures, instead of designing our own and then conflicting.



Look current platforms:

  • iOS takes top and bottom edge gestures for notification and common controls.

  • Android devices and Windows Phone take top. Both have a standard set of buttons at the bottom.

  • Windows 8+ and 10 take all edges: right for Charm (Win8) or Notification (Win10), left for switching apps, top for closing app, and bottom for app menu.

  • Browsers also take left and right for history pages navigation.



After above Discovery and Interpretation, we can define design principles:

  • Leverage native behaviors as much as possible — Because it’s natural.

  • Use simple interaction that works across platforms and devices.

  • Organize functions by usage frequency — Make frequently used functions visible and group infrequently used ones.

  • Don’t block users’ vision.

  • Make guidance and message clear.



#3. Ideation

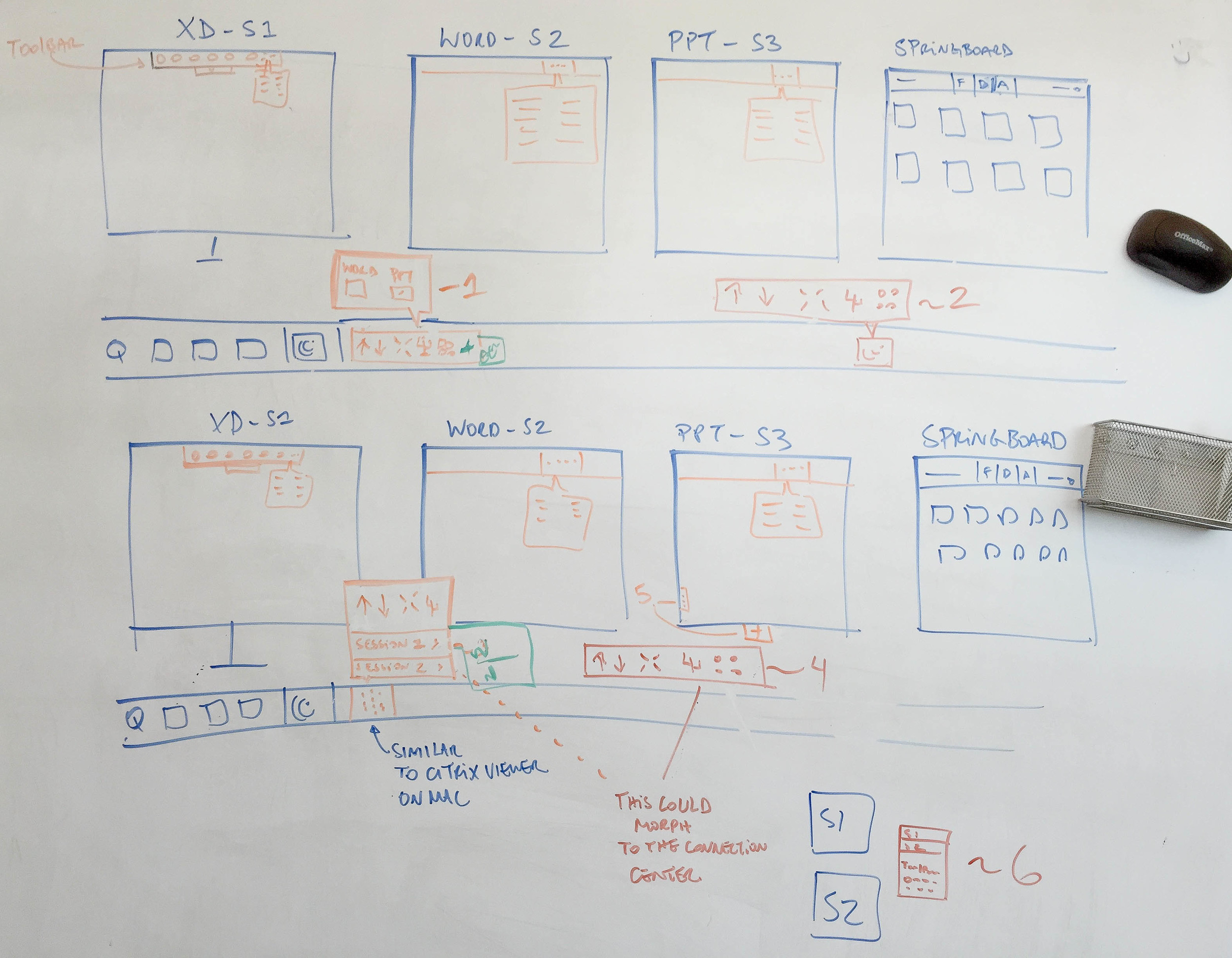

Ideation usually is the most existing part! In the workshops I hosted, after everyone experiencing users’ pain points, creativity never stop bursting in brainstorm. We have explored different form factors in several rounds. Lot of ideas on whiteboardings and sketches created by team:




Brainstorming is fun, but post-brainstorm synthesizing is the key to consolidate all great thoughts. I usually summarize all the ideas by combining common areas and highlighting the outstanding points. This method helps me converge the main streams with branches as options.




In this moment, with product release timeline and resource etc. realistic consideration in mind, I shared concepts with product managers and engineers to clarify feasibility and direction before moving prototyping — with a premise that we have good relationship and trust each other.

As I mentioned earlier, the design process is not linear. In this project, we met a key customer to validate these ideas. Based on their feedbacks, we iterated with more and more details until the proposal is solid. Next, you will see 2 major designs in this project: in-session controls and connection center.




In-session controls




The scope of in-session controls covers virtual desktop on Chromebook and virtual desktop and apps on browsers.

Here is an exploration summary that lists ideas, information presentation, and concerns.

We picked most potential one, #4, and went deeper. I was once debating on either designing an unified UI patterns across desktop and mobile use cases or designing separately.





Fortunately, a flexible idea came up:

  • In-session controls are normally hidden until users need these. We make a trigger point on the top of virtual services, near edge, movable, and minimalist but visible. We design 2 default types:

    • Type (a): Snagging to edge one for non-touch enabled device, such as desktop, for precise mouse clicking and space saving;

    • Type (b): Floating one for touch enabled device, such as mobile and “laplet”, for touch friendly.

  • Once the controls are triggered, it extends along the edge vertically or horizontally.

  • Frequently used functions are in first layer, and infrequently used ones are in a menu, which is scalable.

  • The controls extend from trigger point to reduce mouse cursor or finger movement. The order of function depends on usage frequency and is customizable.

  • Although the default types are different, these are actually interchangeable by pulling out from edge or pushing into edge.

  • In type (a), label presents when mouse cursor hovering.
    In type (b), label presents when controls extended as no hovering behavior on mobile behavior. Also add a translucent layer on the top.

  • Both types are movable and apply same rules. Developers add detecting device monitor size intelligently to prevent overflow orientation.



Here are wireframes:





Connection Center




Connection Center is designed specific for seamless virtual apps on Chromebook. The “seamless” means that virtual apps will run without being accommodated in a container, just like native apps.

A tricky challenge here is that most in-session actions actually effect on an invisible desktop OS that hosts these virtual apps. In virtualization world, we call it “session”. However, most of the non-tech savvy users probably never understand it. Because the actions for apps and session are different but co-existing, we need to educate users the relationship in between when they need to take actions. The case becomes extreme complicated when multiple apps running in more than 2 sessions. Before, a contain for apps look silly but no confusion as these are grouped. Now, with seamless style, we need to let users know which app or session will be impacted on the action they take.

After couple discussions internally and externally, we proposed an ideal solution: Restructuring the Citrix Receiver menu on the taskbar.

Unfortunately, this approach relies on Google to provide API in order to customize the menu. Our product manager initiated the collaboration, but, since they doesn’t commit a timeline, we still need to come up alternative solution for our product release.

We detoured to right-click menu, which is customizable. There users can open the connection center dialog that presents the session concept and relevant actions.

  1. Initial UI

  2. Selecting a session: This will also select the apps belong to itself automatically.

  3. Selecting an app



Visual design provides hints, too. Highlighting area changes accordingly.



#4. Experimentation



In early ideation phase, we’ve shown high level proposals to a key customer. In that interview, the result was totally opposite from our expectation but helped us understand their needs.

Two draft proposals: fixed and floating controls. We thought the fixed one would solve desktop and mobile use cases at once, but admins actually concerned about the spacing on limited resolution screens. Many of their users use Microsoft Excel and similar apps to deal with daily business numbers. Seeing more data maters.



In the second interviews, we proposed above in-session controls and connection center designs and validated that these match their need with many positive feedbacks.



Here are mockups:

1. Citrix Receiver for Chromebook - In-session Controls:



2. Citrix Receiver for HTML5 - In-session Controls:



3. Citrix Receiver for Chromebook - Connection Center:



#5. Evolution

What will be next? We will collect data and feedbacks form customers again after the product goes live, identify new problems and then solve these.

In my design document, I listed customers’ data, such as industry, requests, problem statement, and amount of end users, as business opportunities to remind ourselves — We are designing for human beings in different context. These market evidences also motivate everyone that we are doing something impactful.

Back to the schools in Medellin city, when I think of these kids are using Citrix Receiver to access virtual desktop and apps to learn and explore digital world, I discipline myself to try hard to make every decision right.





Key takeaways


  1. Sometimes problem isn’t as it looks like. Track to upstream to figure out how downstream is formed.

  2. Leadership is about the things I do, not the title or authority I have. Step ahead to take lead on the whole picture.

  3. Partnership makes collaboration easier. The first empathy we should have is to our coworkers, so that we can ally and be efficient.

  4. I never satisfy with my design and always feel there are some areas can be improved. However, as a design lead, I have a baseline in mind and be able to make go or no-go decisions based on business/resource/impact priority.

  5. Always teamwork! Credit to my colleagues.
